Wombat Engine Kit 13  and Installment 23 Drawings and Article
Wombat Engine Kit 13  and Installment 23 Drawings and Article

Wombat Engine Kit 13 and Installment 23 Drawings and Article

Regular price
$15.00
Sale price
$15.00
Tax included.

Wombat Engine Drawings

Drawings   WE-058, WE-059, WE-060B or WE-60A (already supplied), WE-061, WE-062, WE-063, WE-064, WE-065, WE-066WE -067A or WE -067B, WE - 068, WE - 069, WE – 070, WE – 071. Printed  B&W on A3  Sheets and posted only NOT electronic.

Wombat Engine Article

Wombat Engine article, constriction notes and photo's "installment 23" is supplied as a digital download only and you will receive the link to this once you have purchased  either the "Drawings and Article" or Wombat Engine Kit 13. Please download this and print as required.

Wombat Engine Kit 13

PLEASE NOTE THIS KIT WILL NOT BE SENT UNTIL THE WEEK BEGINNING 25th OCTOBER 2021.

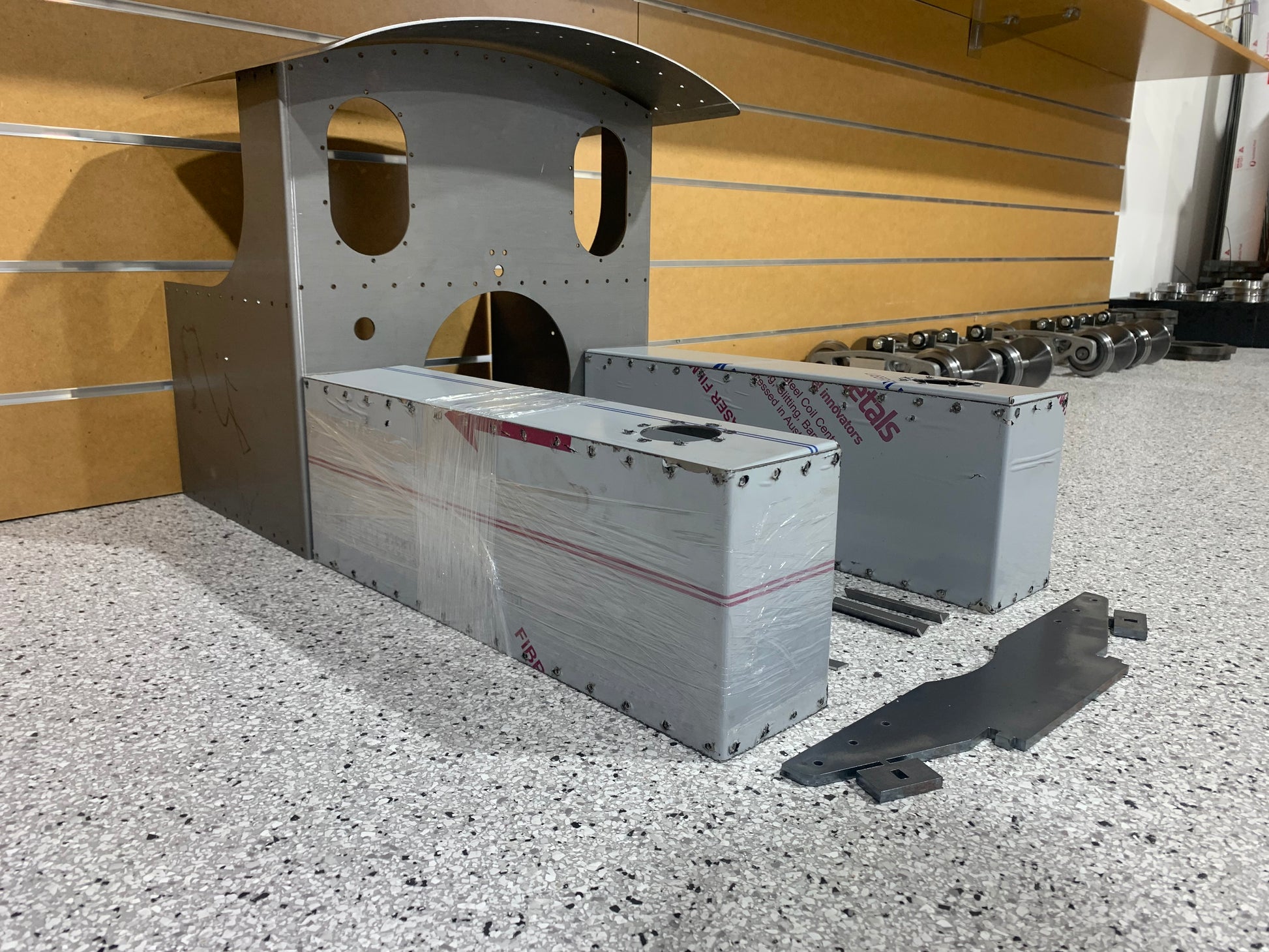

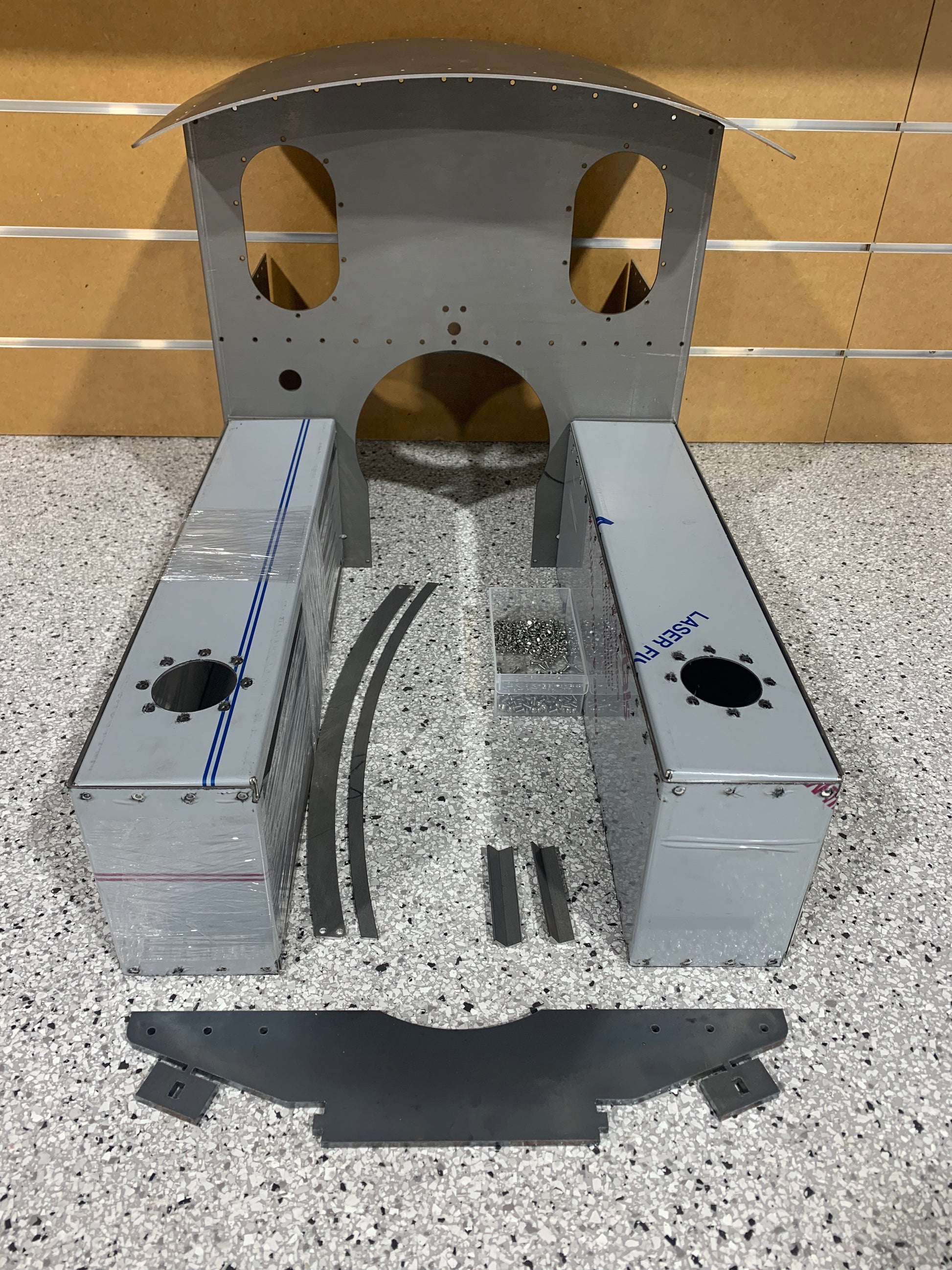

Wombat Kit 13 Contains the Following Items:

Laser Cut and Folded Stainless Steel Tank Top x 2

Laser Cut and Folded Stainless Steel Tank Bottom x 2

Laser Cut and Folded Stainless Steel Tank Side x 2

Laser Cut Stainless Steel Tank Rear x 2

Laser Cut BMS Steel Tank Bracket

Teroson Seam Sealant Grey x 1 Tube

Laser Cut and Rolled BMS Cab Roof x 1

Laser Cut and Folded BMS Cab x 1

Laser Cut and Folded BMS  Roof Side Angles x 2

Laser Cut  BMS Cab Front Trim x 1

Laser Cut and Rolled BMS Front Top Band x 1

Laser Cut BMS Rear Trim x 1

Laser Cut and Rolled BMS Rear Top Band x 1

Fasteners Set x 1 (as per the list in the article)

Brass Angle for Cab

Brass angle supplied in suitable lengths for the Cab assembly.
