Bolton Number 12 Beam Engine

No 12 Beam Engine

1 7/8” Bore by 3 ¾” Stroke

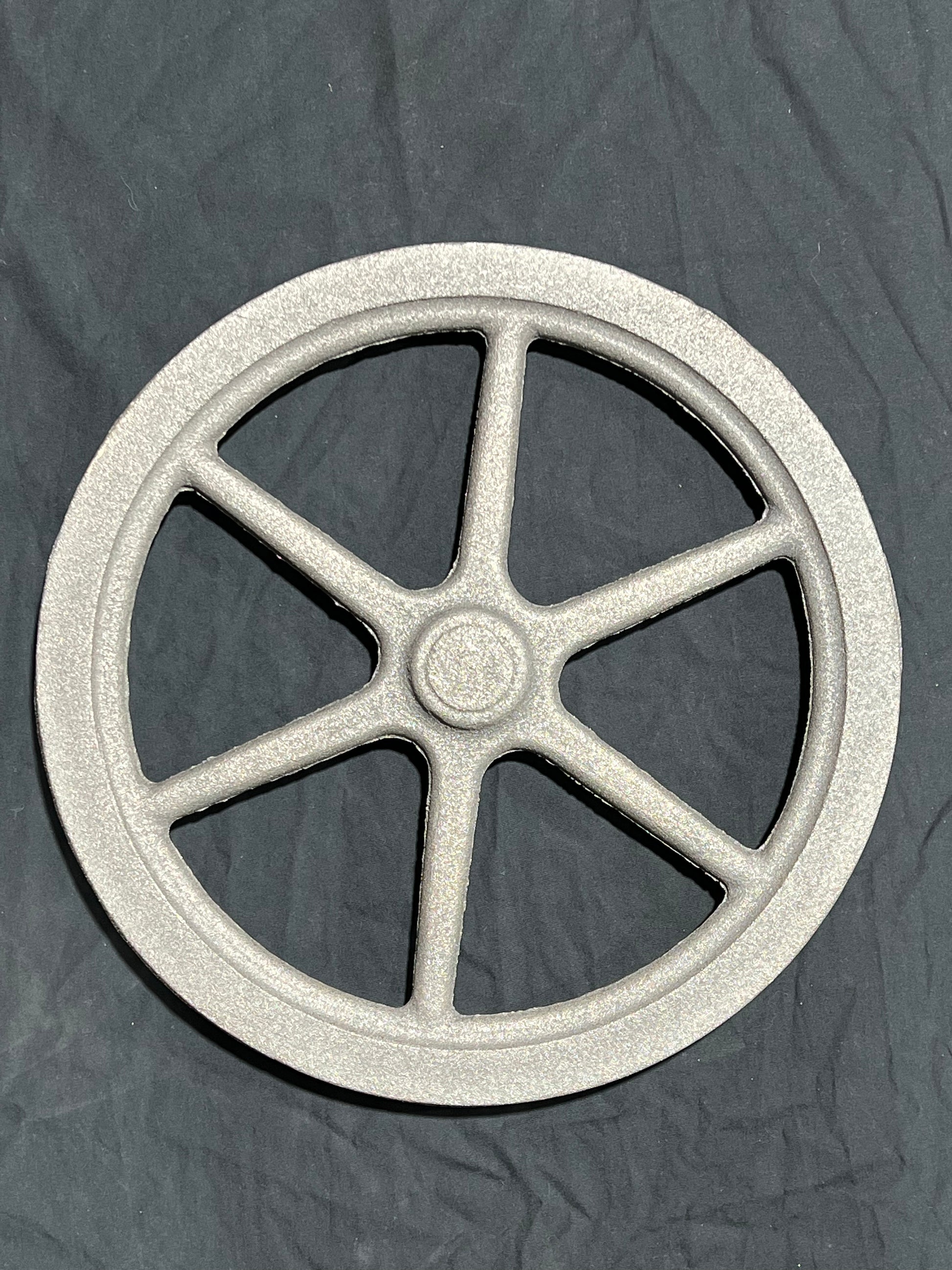

Flywheel 14"

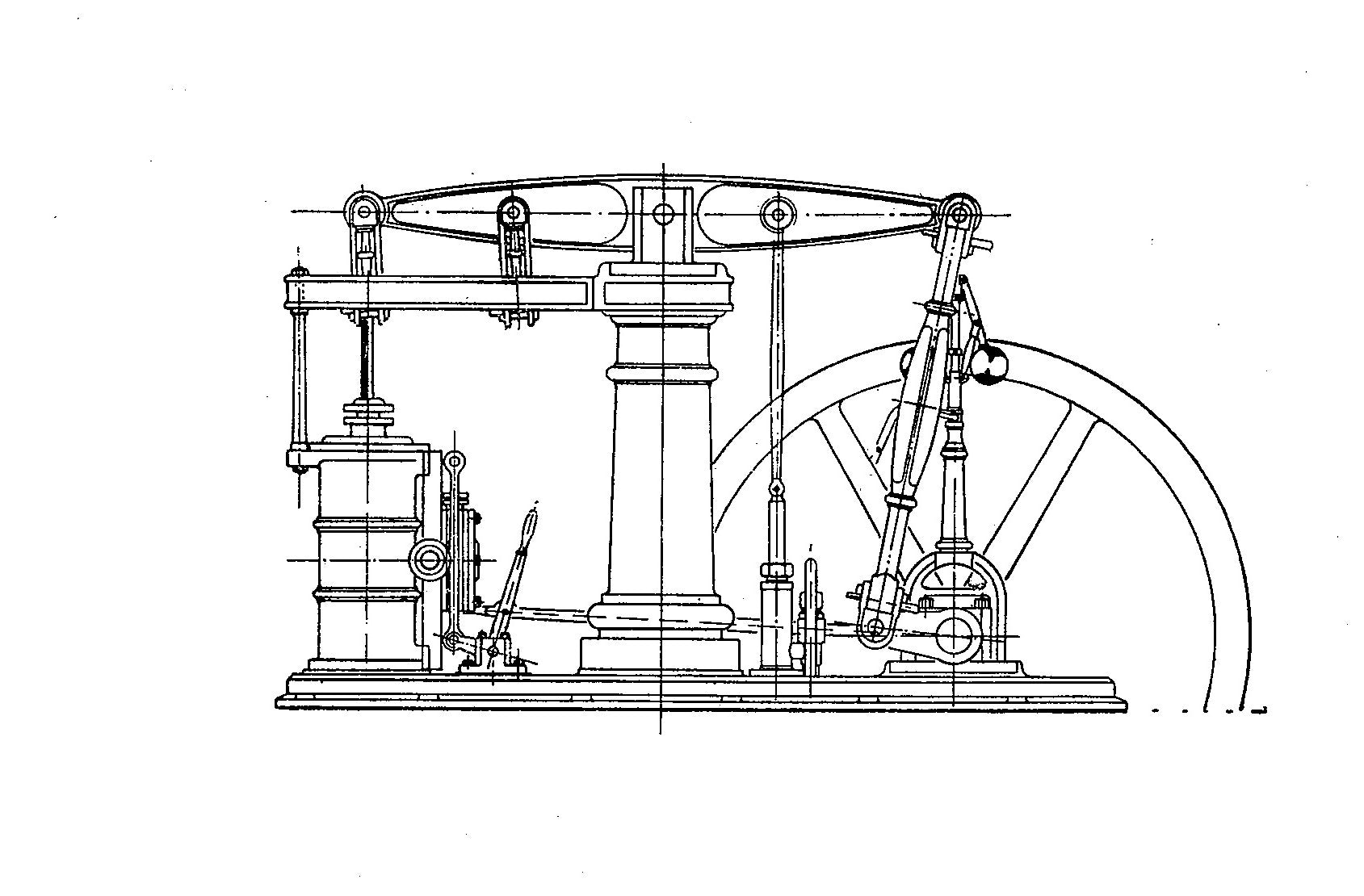

This exceedingly beautiful model was based on the pumping engine installed at Walka Water Works, Oakhampton, near Maitland NSW. It is currently the largest commercially available model beam engine in the world. This model represents a 16 Horse Power beam engine of about 1880 and has the beautiful parallel motion, an invention of James Watt, to keep the piston rod vertical instead of a crosshead and slide bar. The ball weight speed governor is also another of Mr Watts patents. The beam engine is probably the most impressive type of engine ever built. Its huge flywheel, large overhead beam and long connecting rods usually polished brightly, and large centre column combined with the low speed of about 8 to 12 rpm's gives it a dignity not possessed by any other machine

Important Notice:

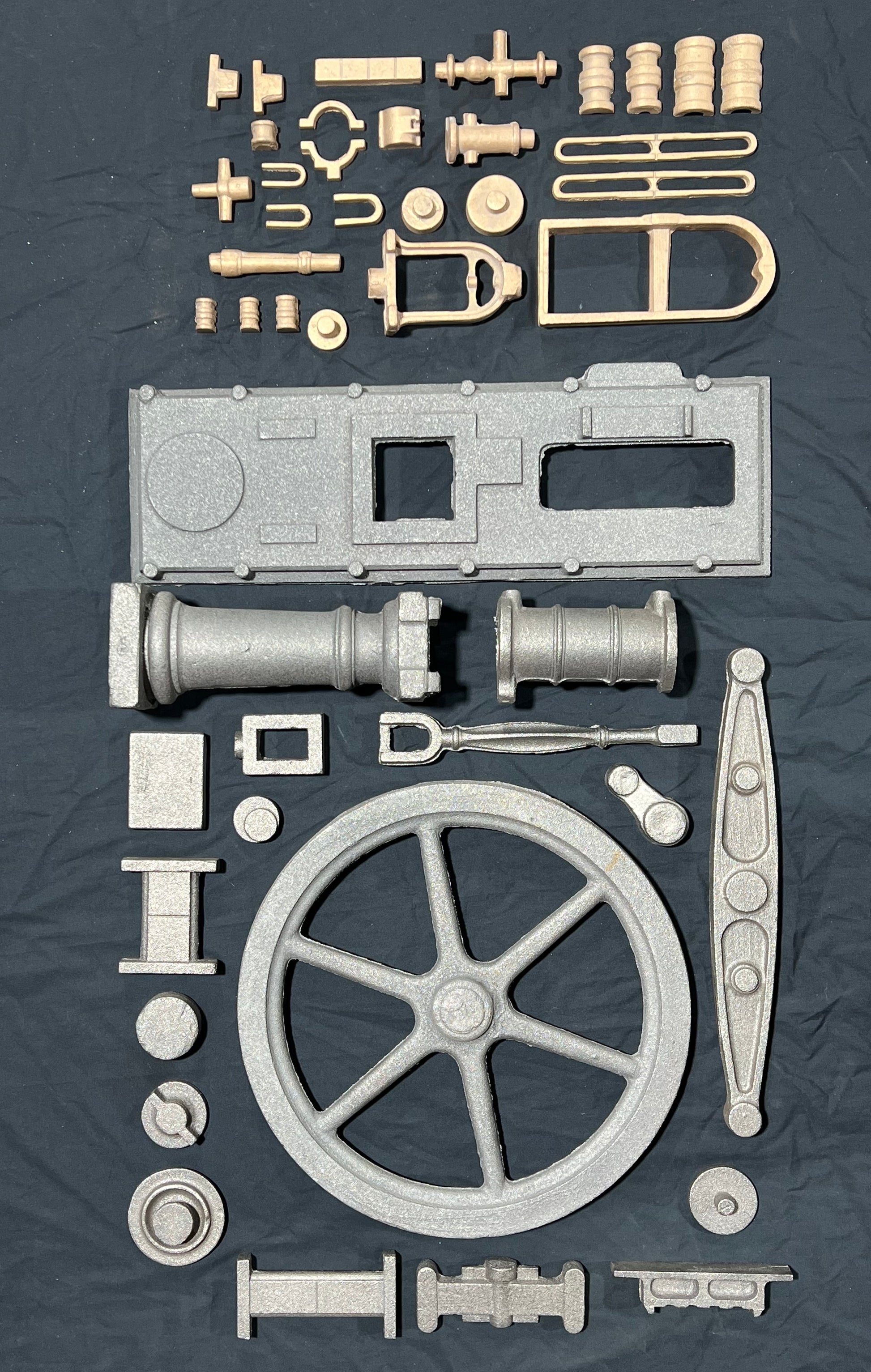

Due to foundry lead times, some castings may be temporarily out of stock. While we make every effort to keep our most popular items in stock, delays can occur. We recommend contacting us to confirm availability before placing your order. All castings will require machining. The image shown is for display purposes only.
