7" 1/4 NSWGR U Class
WORLDWIDE SHIPPING

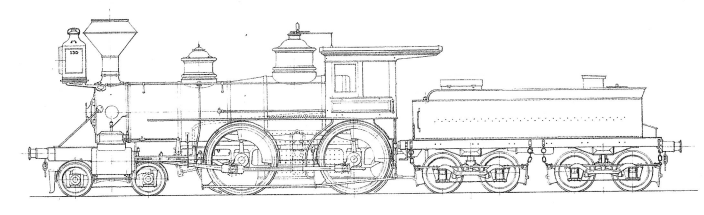

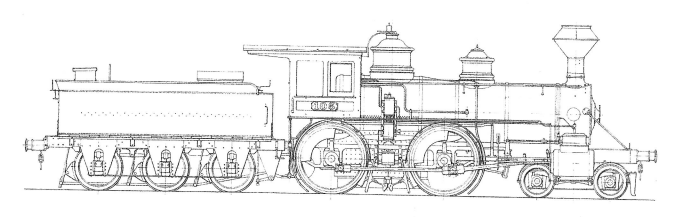

NSWGR U Class Locomotive and Tender by Ernest Winter.
29 AO Sheets in 7" 1/4 Gauge - This is not a complete set as the project was never completed.
Sheet 1 - GA
Sheet 2 Main Frames
Sheet 3 - Buffer Beams, Frame Stretchers Etc
Sheet 4 - Driving Wheels, Axle Boxes, Horn Blocks Etc
Sheet 5 - Engine Bofie
Sheet 6 - Engine Brakes as per U130 Class
Sheet 7 - Locomotive Suspension
Sheet 8 - Cylinders
Sheet 9 - Slide Valves
Sheet 10 - Chimney, Base, Saddle Etc
Sheet 11 - Smokebox
Sheet 12 - Valve Gear
Sheet 13 - Rod, Crosshead (Incomplete)
Sheet 14 - Smokebox and Cylinder Plumbing (Incomplete)
Sheet 15 & 16 - Boiler (Dated 1991)
Sheet 17, 18, 19, & 20 Boiler (Dated 2017)
Sheet 21 - 29 - U130 Tender Drawing Set (Bogie Tender)
