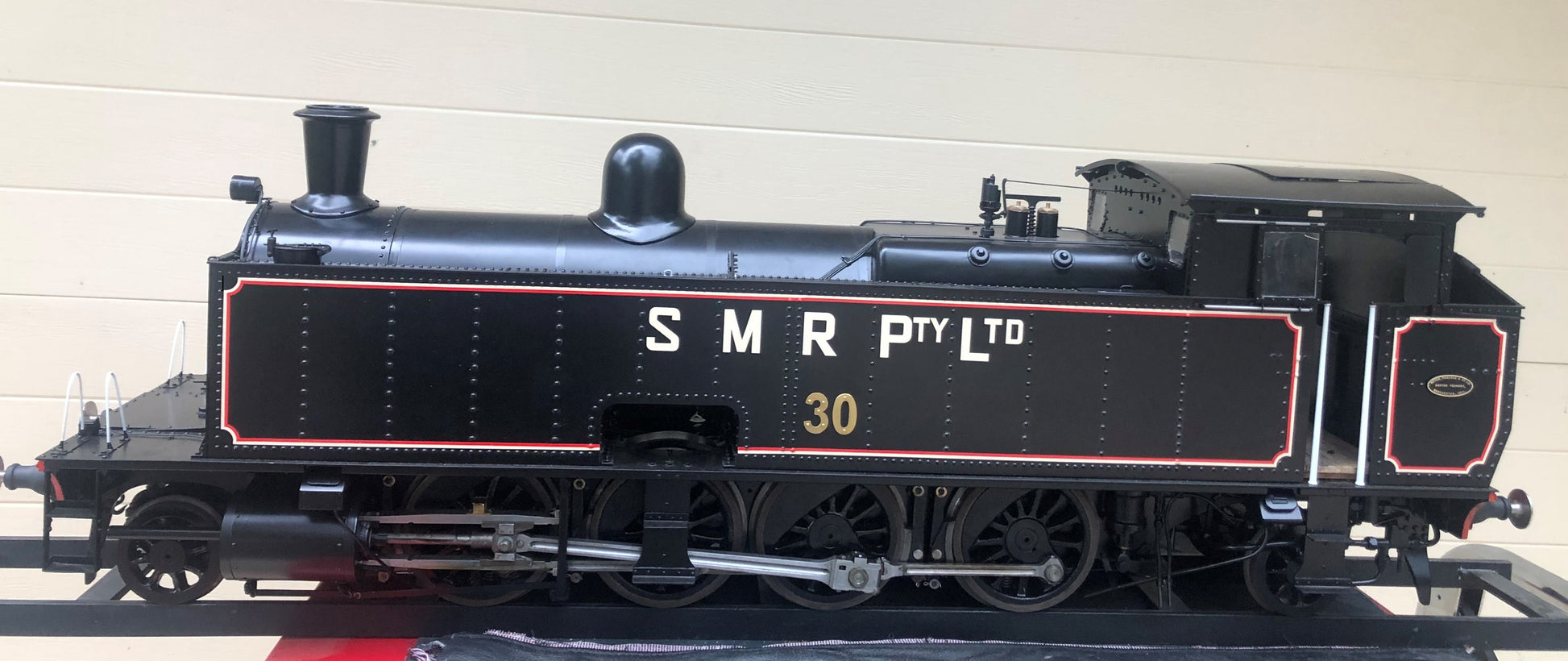

5" Gauge SMR 10 Class 2-8-2T by Ernest Winter

A full detailed set of 18 drawings and castings are available for this locomotive by Ernest Winter.

Casting Set Engine CI

Cylinder (2) Front Covers (2) Rear Covers (2) Piston (2) Steam Chests (2) Steam Chest

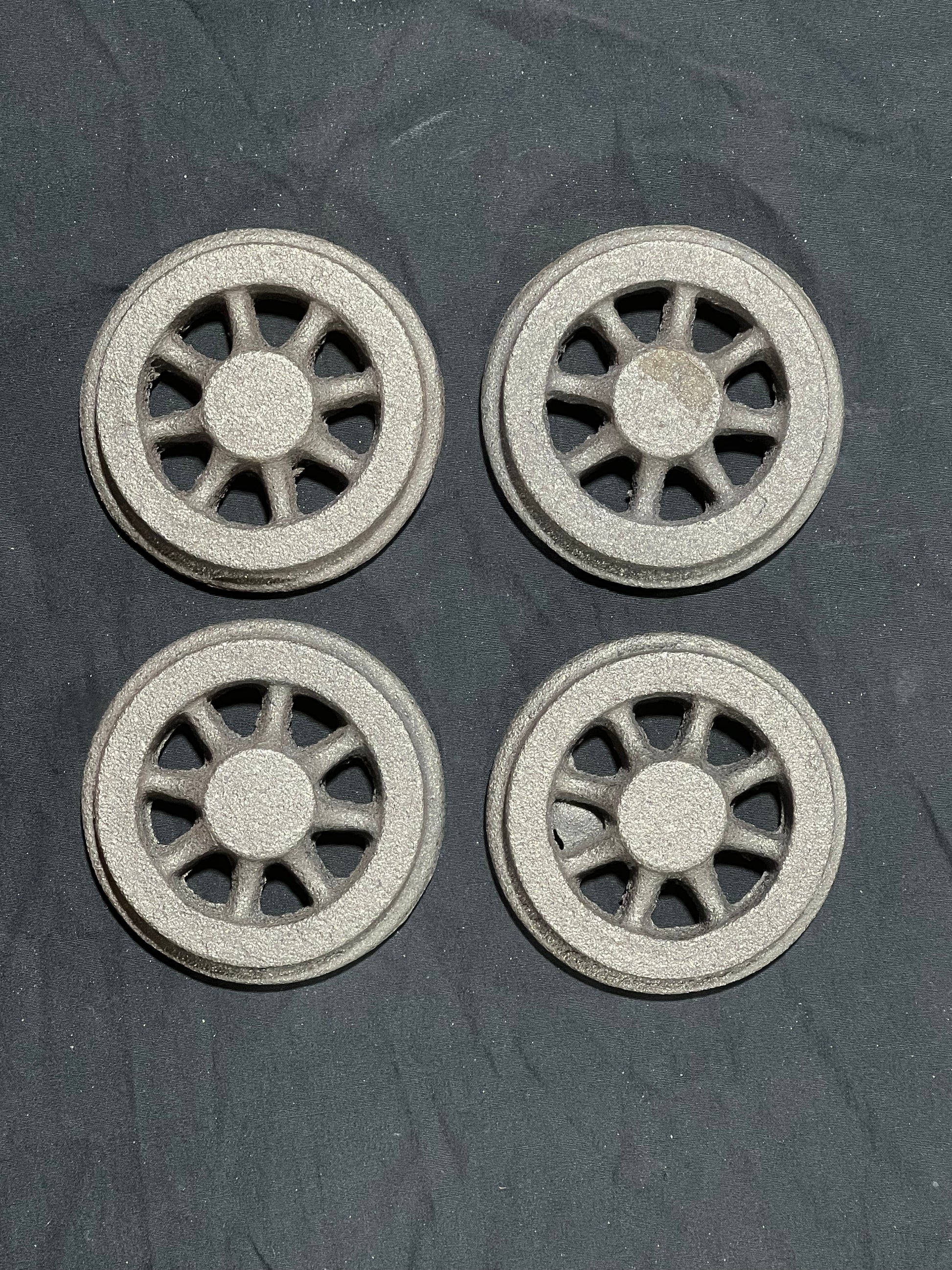

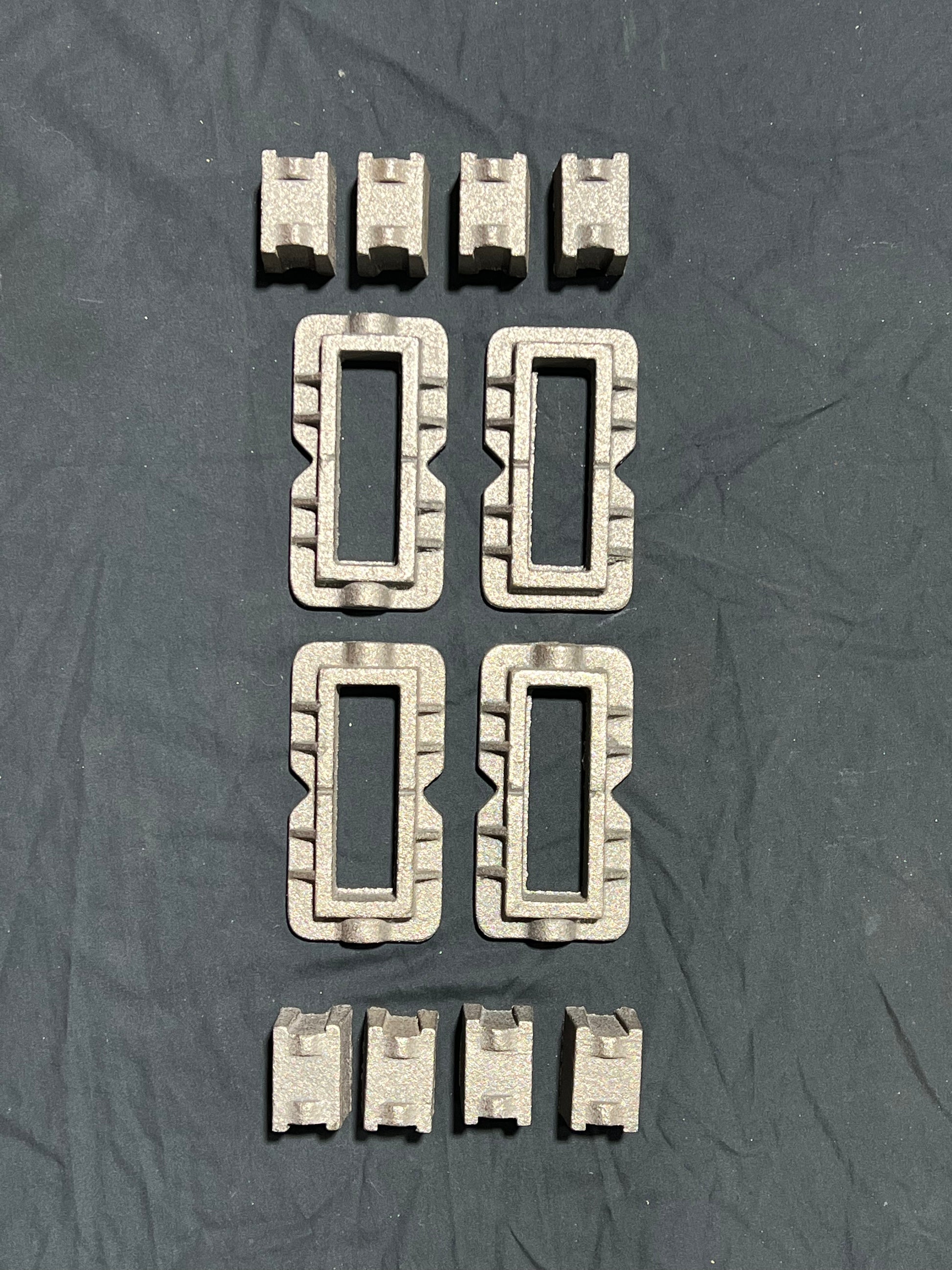

Cover (2) Slide Valve (2) Main Horns (8) Main Boxes (8) Driving Wheels (2) Coupled
Wheels (4) Second Coupled Wheels (2) Bogie and Truck Wheels (4) Buffer Stocks (2) Brake Shoe Ring (1) Main Keeps (2 Bars)

Casting Set Engine GM

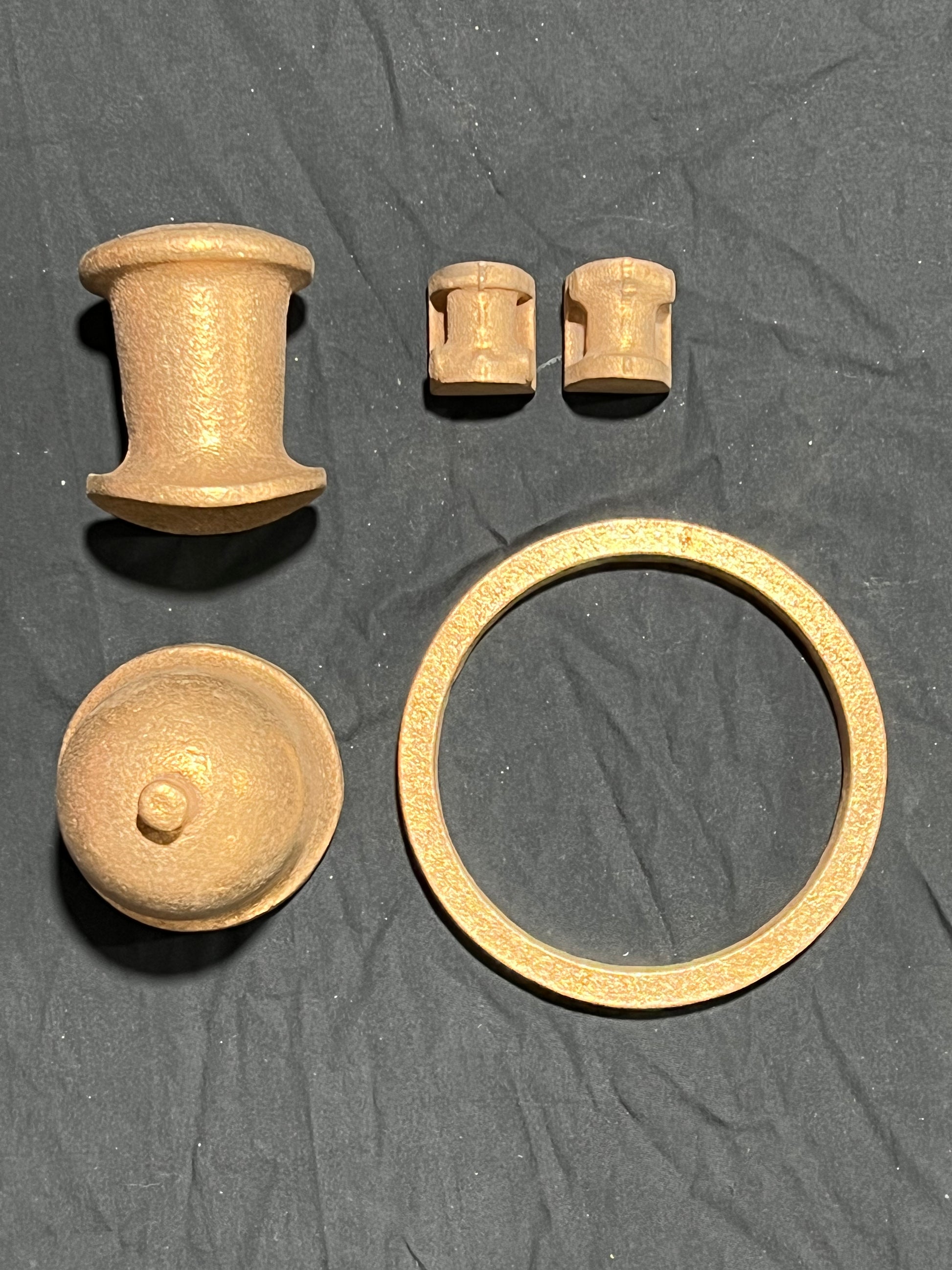

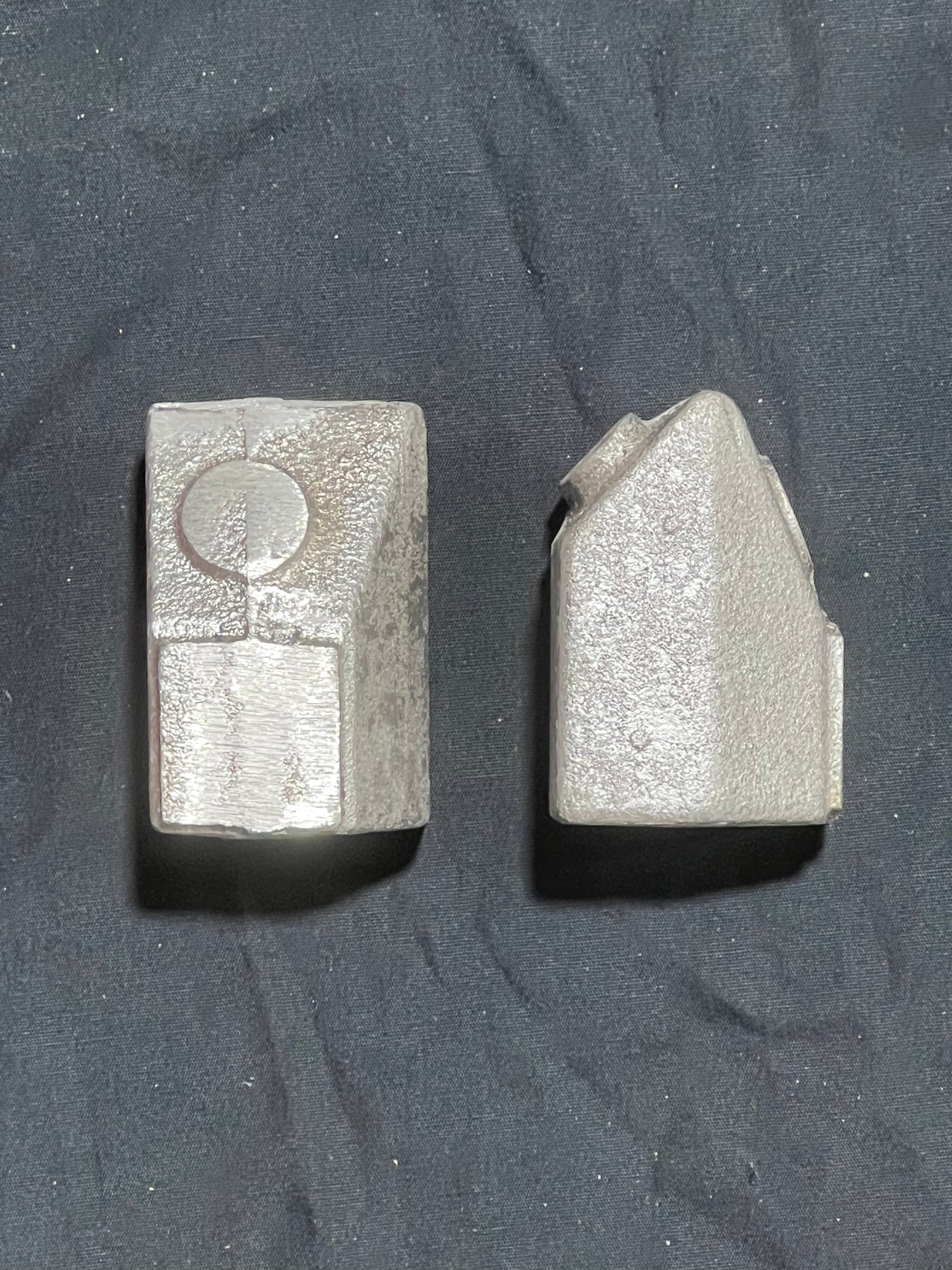

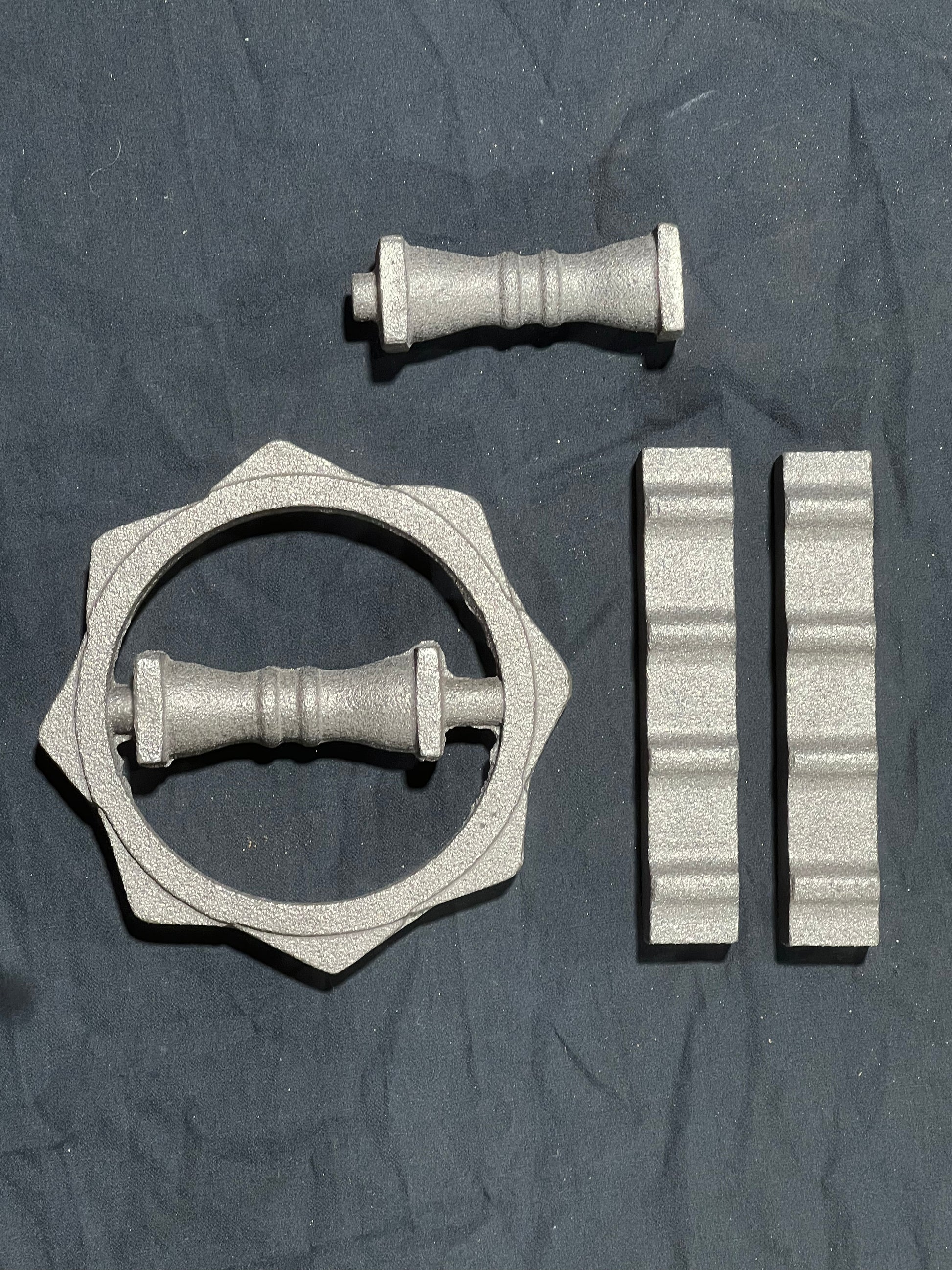

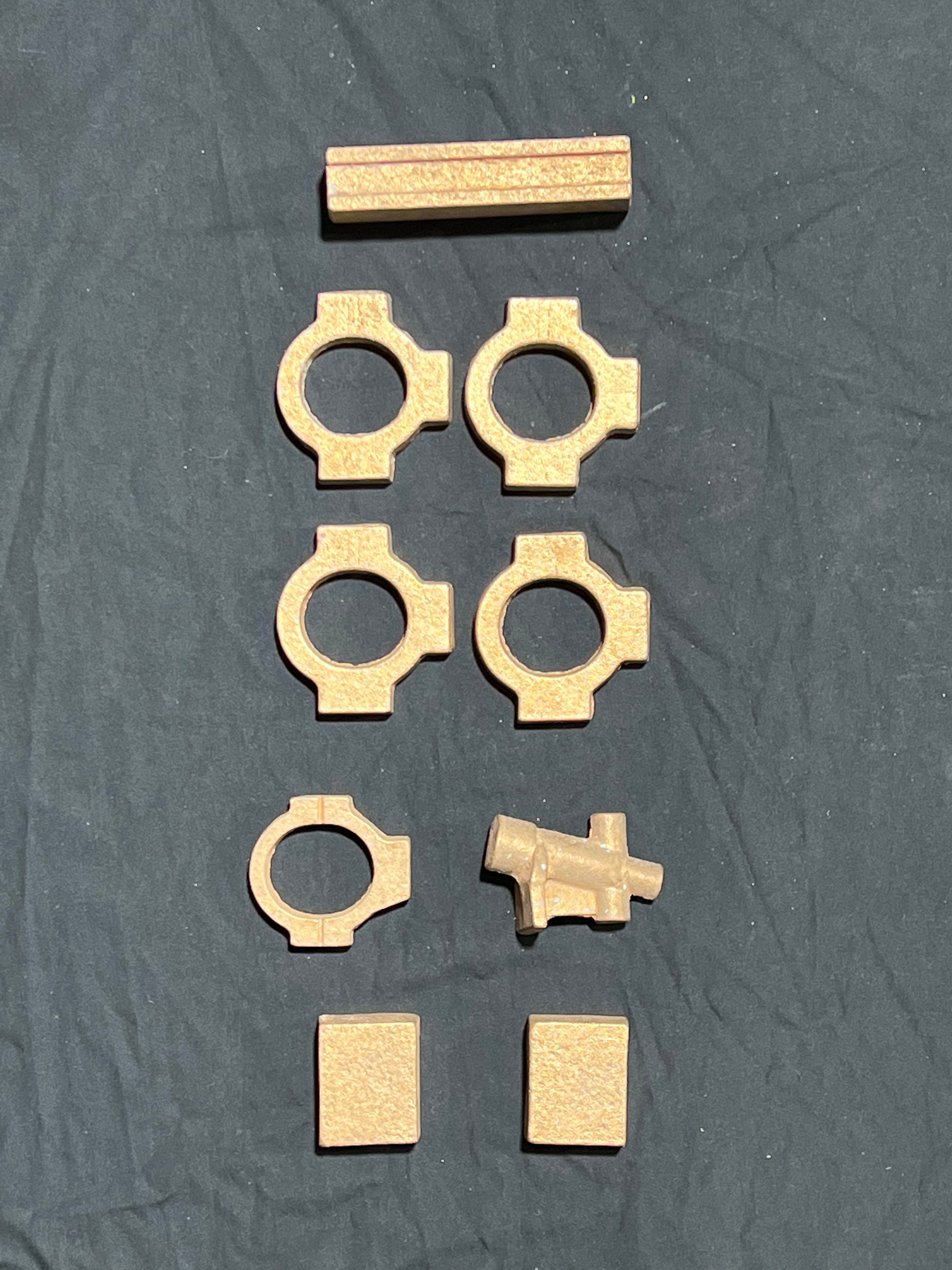

Valve Buckle (2) Smokebox Door (1) Smokebox Door Ring (1) Dome Bush (1) Dome Flange (1) Dome Top (1) Regulator Body (1) Regulator Bush (1) Regulator Stuffing Box (1) Steam Pipe Bush (1) Water Gauge Bush (2) Bogie Centre Bearing (2) Bogie Axlebox (1 Bar) Valve Eccentric Straps (4) Pump Eccentric Strap (1) Pump Body (1) Chimney (1) Dome Cover (1) Brake Cylinder (1) Smokebox Back Ring (1) Sand Box (1LH and 1RH)

• Cylinders 1 3/4” by 2 5/32”
• Driving Wheels 4 1/2”
• Overall Length 38 1/4” Height and Width 14 3/8” by 9”

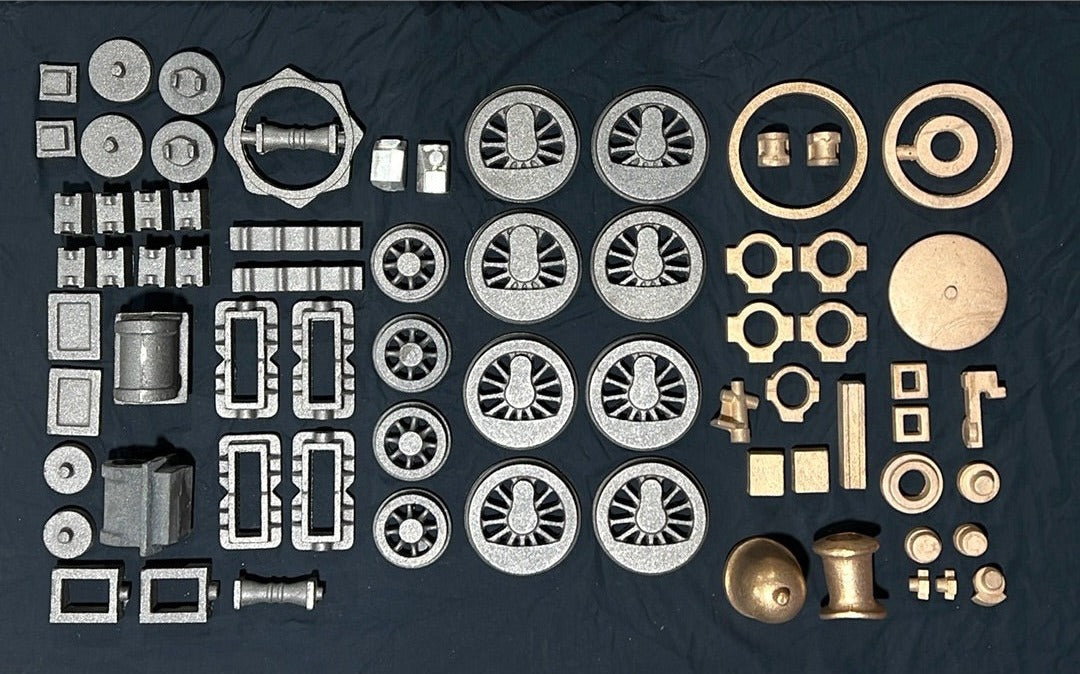

Casting Set Contains 74 Cast Iron and Gun Metal Castings - Please note casting are cast to order only.

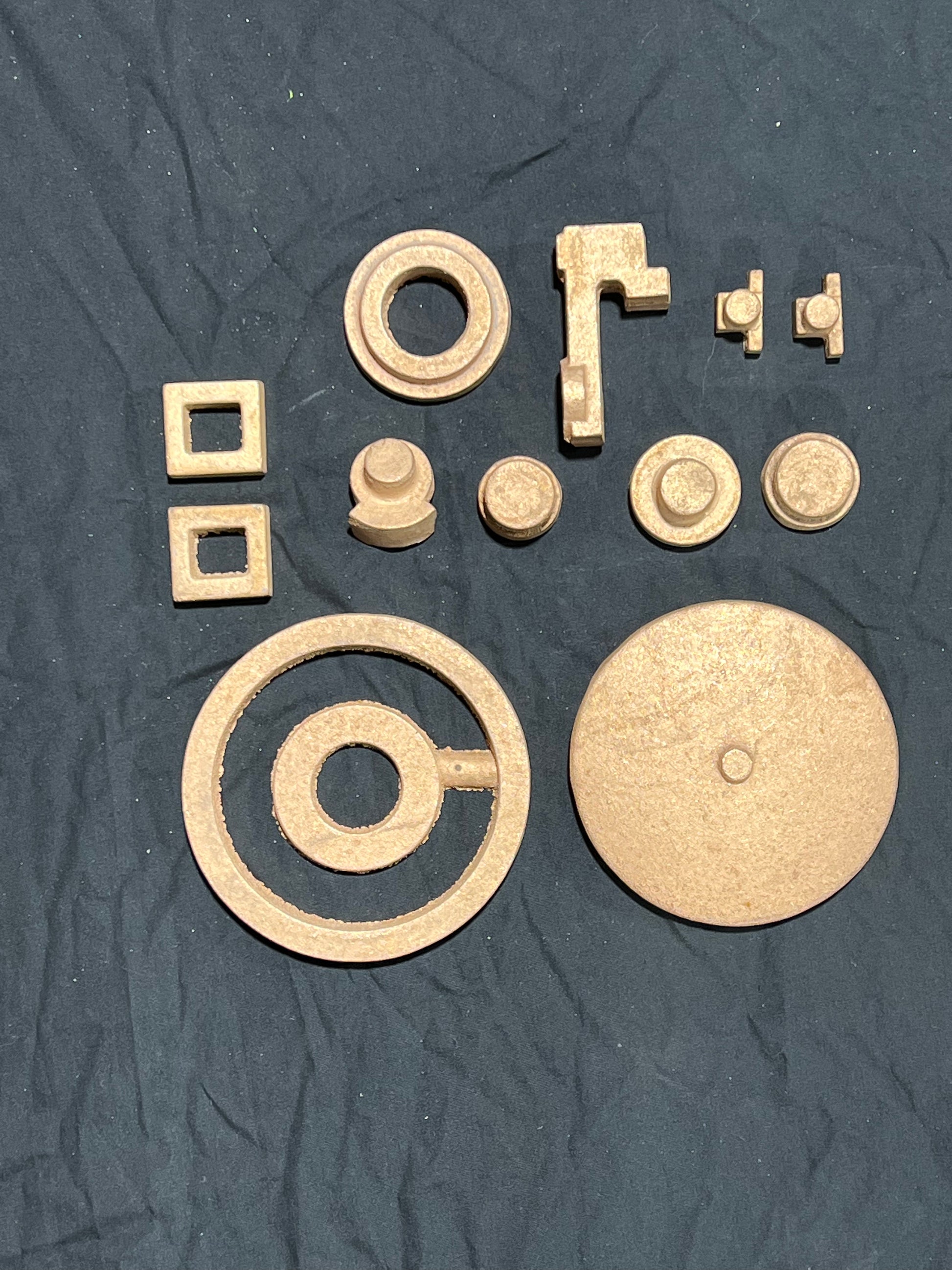

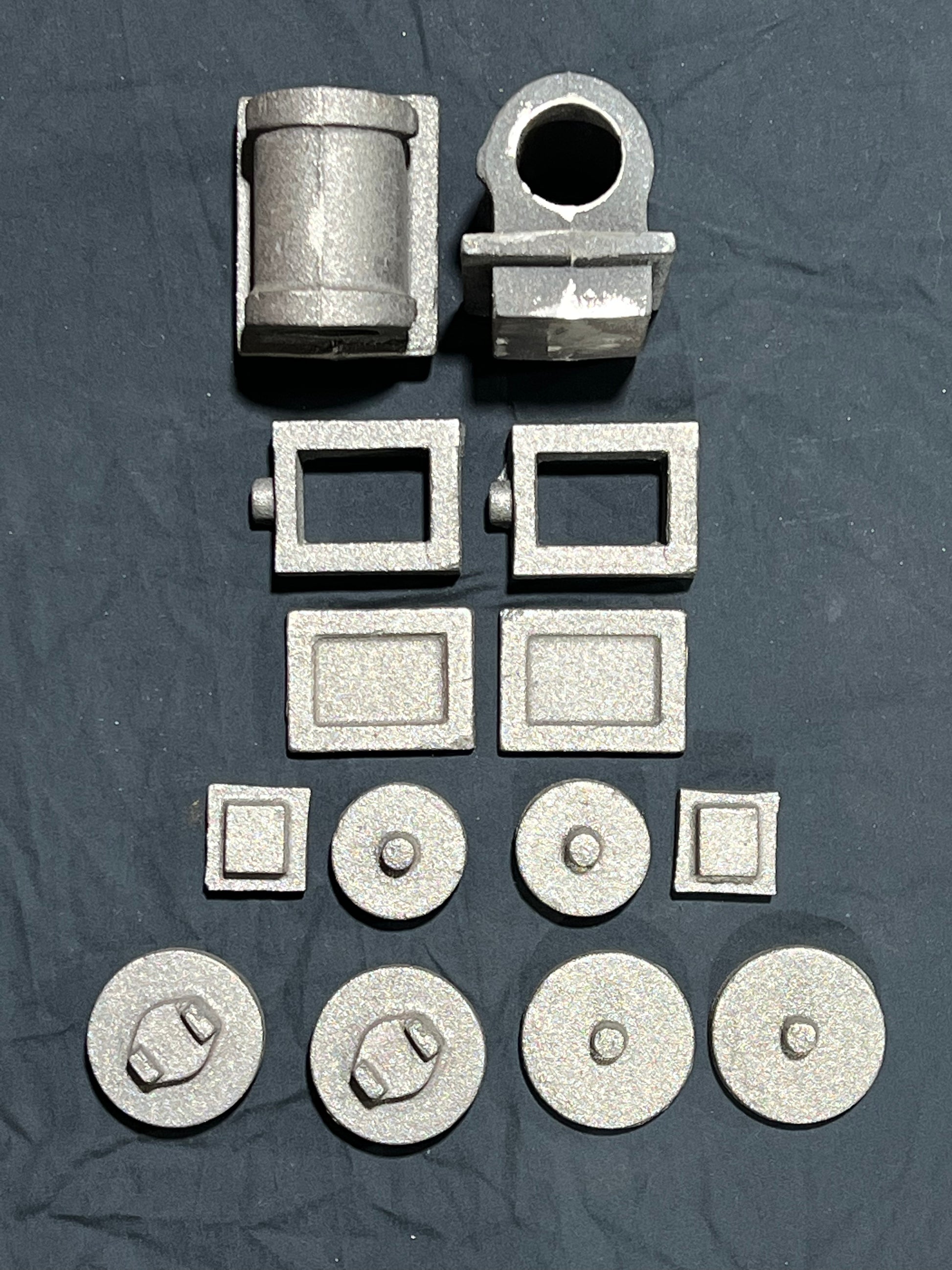

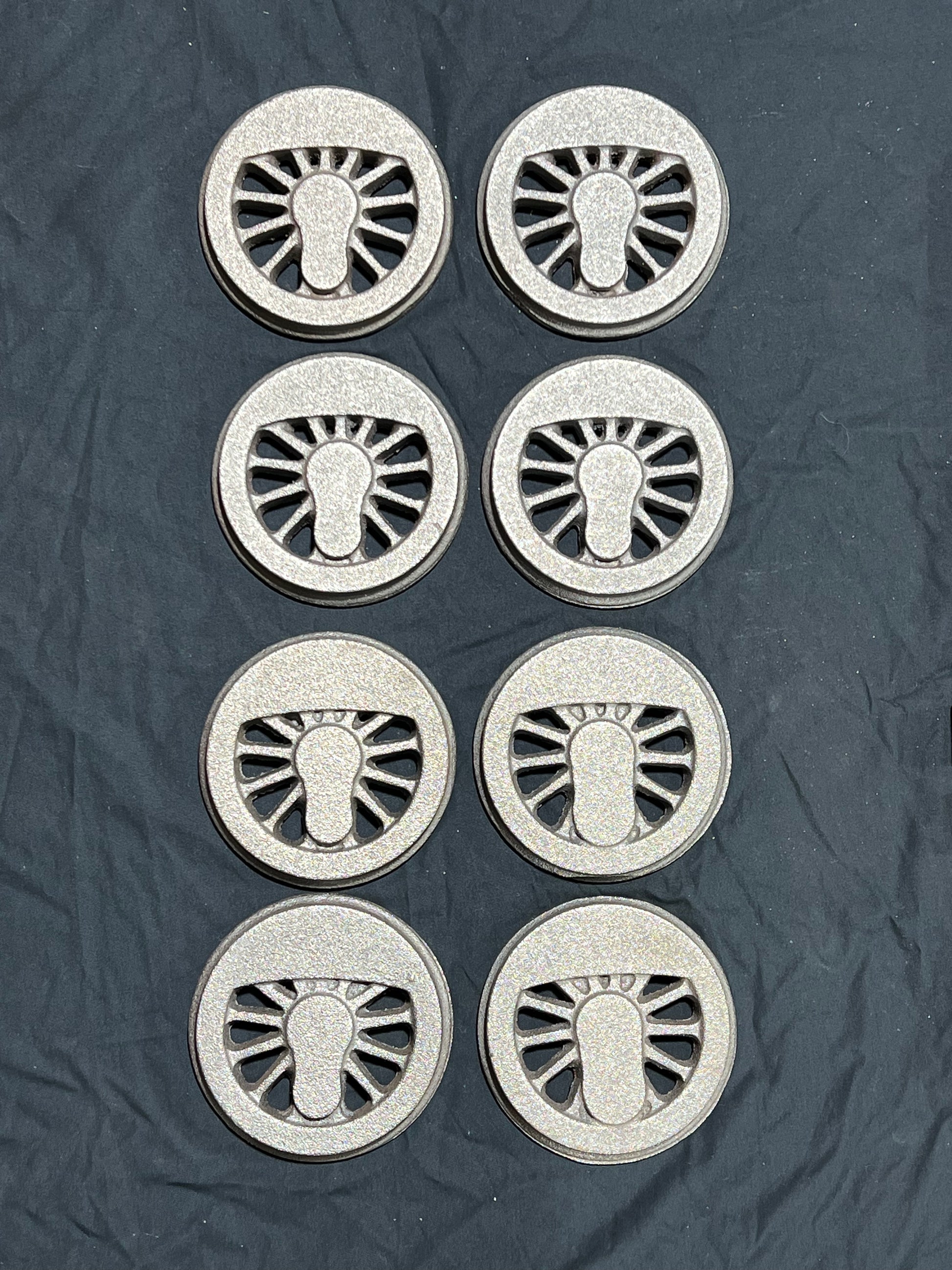

Please note all castings will require machining. The image shown is for display purposes only.
